ROOF SYSTEM AND WİNG RİNGS

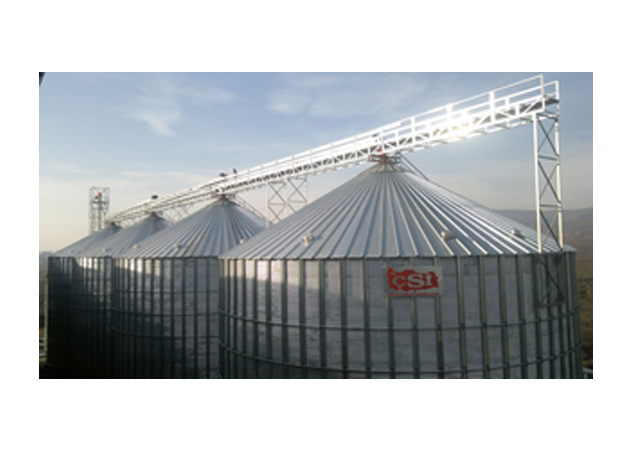

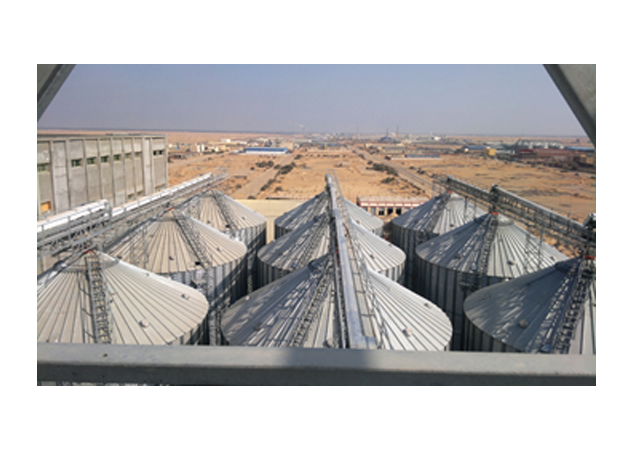

Roof System

Our roofs have 30 degree inclination, and this design provides easier ventilation inside the grain in the silo. Roofs have been produced to show strength from 7.000 kg. to 14.000 kg. Our designs have strength for 154 kg/m2 standard snow load and 170 km/h standard wind speed. The roofs having the diameters from 3.65 mt to 12.80 mt. have the single layer roof system with support. This type of roofs can be strong against the loads of 907 kg (2.000 lbs) and 78 kg/m2 (16 psf) live load. The roofs having the diameters more than 14.63 mts are produced using two layers roofing system. This type of roofing system are suitable for the loads 4.536 kg and more. They also can carry 122 kg/m2 live loads. Our roof panels are triangle shaped and both sides of the panels are formed as 90 mm deep trapezoidal. All our roofing systems have roofing entry covers.

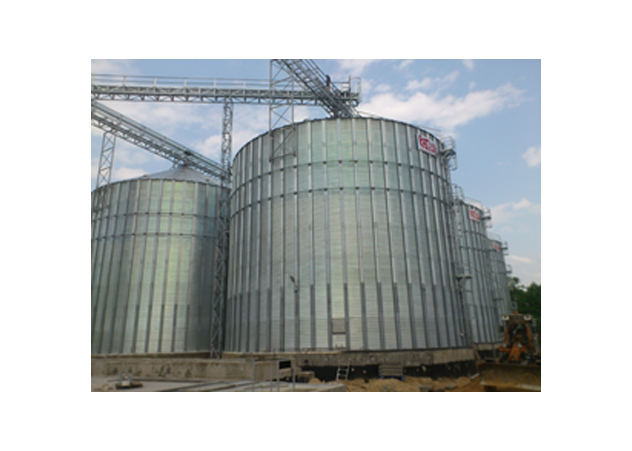

Wing Rings

CSI wind rings are used to increase the strength of the silo body. During the discharge, silo shows resistance to internal pressure and stress by the wind rings. With the wind rings, you can use your silo for many years safely. Wind rings are used in different quantities according to the silo diameter, seismic zones and side discharge doors.
